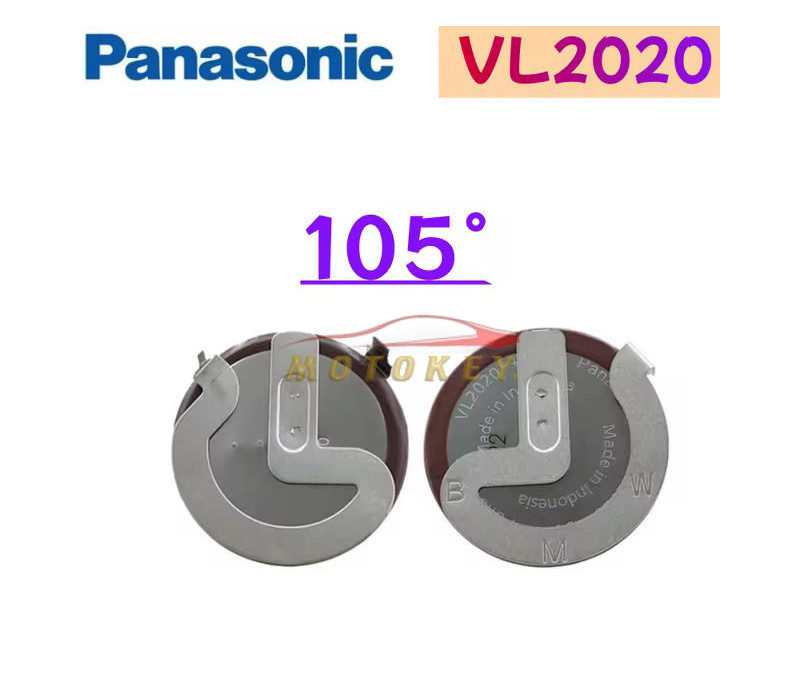

Panasonic VL2020 Lithium Button Cell - 105 Degree PCB Mount - BMW

Panasonic VL Series Rechargeable Lithium Coin Cell PCB Batteries.

SIZE = 20mm x 2mm
Pin Angle= 105 Degrees
Pin Assignment = Negative point thin pin

The Panasonic VL Series of coin cell rechargeable batteries are an excellent battery to use for applications when the voltage stability is more important to you than the battery capacity. The battery chemistry is environmentally friendly, Lithium Vanadium Pentoxide, providing a reliable power source, PCB pin, a wider range of temperature reliability, low discharge rates and amazing overcharge and plus their design is space saving.

Features and Benefits.

• Lithium VL series Coin Rechargeable batteries.
• Chemistry, Lithium Vanadium Pentoxide.
• PCB Pin.
• Voltage stability.
• Reliable.
• Low discharge rate (approx. 2% per year).
• Overcharge and over-discharge capability.
• Nominal voltage 3 V.
• Average discharge voltage 2.85 v.
• Charge voltage 3.25 to 3.55 V.
• Cut off voltage 2.5 V.
• Discharge low of 0 V.
• Charge / Discharge cycle of 1000 times at 10% discharge to normal capacity.
• Operating temperature -20°C to +60°C.

Typical Applications.

• BMW E46 E90 Mini Cooper
• Memory back-up (RTC Circuits).
• Notebook.
• Desktop computers.
• Mobile phones.
• Hand held devices.
• PDA’s.
• Office equipment.
• Fax machines.
• Many other appliances.

NOTE! Please check your existing battery pin assignment and angle before ordering.
Due to the delicate nature of these cells we cannot accept returns on them.
