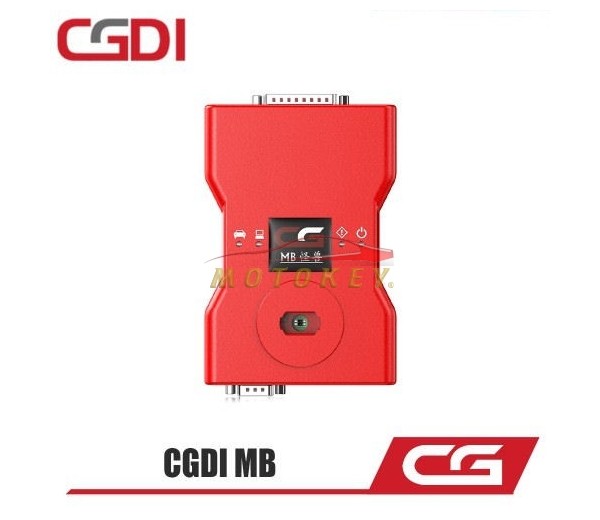

CGDI MB Tool Base pack Supports all FBS3 Systems Key Programmer

CGDI-MB
  1. CGDI MB supports fastest Mercedes Benz car key add: collection time 1'50s, password calculation time 40s, 99% get password for one time calculator.
  2. Supports Mercedes all keys lost including W211, W209, W204, W207, W212, W166, W246, W197, W172, W164+ etc.
Weight 1.00 kg
R11,500.00



Reliable, Safe and Secure shopping with us.



Country-wide Courier / Post available



Returns are welcome. T&Cs apply.

CGDI MB Benz Key Programmer

Highlights:


1. Supports Fastest Mercedes Car Key Add: Collection time 1'50s, password calculation time 40s, 99% get password for one time calculator, it is the fastest key programming tool to calculate the password at present.

2. Work on both BE Key and Original Key

3. CGDI MB All Key Lost Support List:
W164, W216 (2009-)
W164, W216 (2009-)(Fast)
W164 (Old), W221 (-2009)
W164 (Old), W221 (-2009)(Fast)
W166, W197, W212(Old),  W212, W246
W169
W169 (Fast)
W172, W204, W207, W209, W211
W172, W207, W209, W211(Fast)
W202, W203, W208, W210, W463, W639 (K)
W202, W203, W208, W210, W463, W639 (K)(Fast)
W215 W220
W230
W639 (CAN 2009-)
W639 (CAN 2009-)(Fast)
W906
List keeps updating

4. Support more old Mercedes cars key programming by OBD compared to other Mercedes key programmer like VVDI MB Tool, such as
W210, W203, W639, W220,W215, W169
Mercedes E Series W210 before year 2004
Mercedes C Series W203 before year 2005
Mercedes V Series V639 before year 2008
Mercedes A Series W169 before year 2009
Mercedes B Series W169 before year 2009
Mercedes S Series W220 before year 2005
Mercedes E Series W211 before year 2008

5. CGDI MB support ECU renew on these models at present:
ME9.7, MED17, CR3.xx, CR4.xx, CR5, CR60.xx, CRD.11, CRD2.xx, , SIM266, SIM271DE2.0, SIM271KE2.0, SIM4LE, SIMELKE
Support Gearbox Renew on EGS 7G


6. With new Diode equipped, which makes infrared more sensitive to keyless go key. No need to replace diode chip yourself anymore

7. Free Update Online Lifetime.

Please download latest software Here

8. Language: English, Spanish, French, German and Chinese

9. With Mileage Repair and Gateway Read/Write Authorization Free (Since March, 2019) and FBS4 Mileage Repair.
Mileage Repair Support Mercedes List:
C(W204) / GLK(X204) / CLK(207) /E(W212) /SLS(197) /CLS(W218) / R-Class(W251) /GL(X164) / ML(W164) / E-Class(W211) / CLS(W219) S-Class(W211) / CL(216) C-Class(W203/ CLK(W209) / SLK(R171), Keep Updating.

For FBS4 Mileage Repair:
Need to Open FBS4 Mileage License and Buy 205 Extend Board

CGDI MB Benz Key Programmer
CGDI MB Benz Key Programmer


Notice:
Please don't disassemble CGDI device yourself, or it will get damaged.
There is an encrypted battery inside machine, once device open, it will get power failure automatically and need to return for repairing.

CGDI MB Key Programming Features:

1. Automatically identify the basic key information (including how many times you used SSID)
2. Can directly read pin code of BE keys via infrared, can erase BE keys.
3. NEC adapter can write the original Benz smart key and common key.
4. Can write the Benz original key via infrared.
5. Can restore the data of key and EIS with the key password.

CGDI MB Function List:

1. Able to add keys on Mercedes Benz and program a new key when all keys are lost.
2. Add new Mercedes Benz keys: Data acquisition for 1 minute 50 seconds, pin code for 40 seconds and 99% success.
3. Program a new key to the following models when all keys are lost: 211, 209,204, 207, 212, 166,246,197,172,164+, 216 etc.
4. Read EIS data via OBD, no need to distinguish the EIS/EZS model.
5. Display the key status and directly disable the key position.
6. Display EIS Number, which can distinguish the Mercedes model
7. Display EIS status.
8. Automatically identify EIS model.
9. Automatically identify CAN protocol
10. Read key pin code via infrared on parts of 209/211/220/215 EIS.
11. Read/write EIS via infrared.
12. Generate the key data of HC05/908/912/9S12/NEC EIS/EZS with only 26s, format include:11/ 41/51 (41 format is smart key data)

CGDI MB Support Mercedes Benz Car List:

Generally, CGDI MB can work on all Mercedes till FBS3.

Mercedes Benz Series Year Chassis
A Class  -2004 W168
A Class 2004-2012 W169
A Class 2012-2015 W176
B Class 2005-2012 W245
B Class 2014-2015 W246
C Class 1996-2000 W202
C Class 2004-2007 W203
C Class 2007-2014 W204
C Class 2006-2013 W205
CL Class 2006-2013 W206
CLK Class  2002-2007 W209
CLS Class 2005-2007 W219
E Class 2002-2007 W211
E Class 2008-2014 W212
G Class 2006-2010 W463
GLK Class  2008-2014 X204
ML Class 2005-2010 W164
R Class  2005-2010 W251
S Class 1991-1998 W140
S Class 1998-2004 W220
S Class  2006-2011 W221
SLK Class 2000-2010 W171
SLR Class 2003-2007 C199
SLS Class 2007-2014 w197
SMART 2009-2013 W450
SPRINTER 2006-2011 W906
VIVO/VIANO 2007-2013 W639

How to Activate CGDI Prog MB?

CGDI Prog MB needs activation when you receive it. Please follow the steps as below:
1. Download Benz Monster Latest software Here, there will be user manual too in the software catalogue
2. Install software on your laptop, activate device yourself from menu Online Store.
You can choose "Blue Member One Free Token Lifetime" or "Silver Member Two Free Token Valid 180 days"
online yourself.

CGDI MB Token Policy:

1. Blue Member: One Free Token Lifetime

2. Silver Member: Two Free Token Valid 180 days.

When license gets expired, please pay $60 for Token Service 180 Days for CGDI MB. After you pay for it, can calculate online two times free 180 days again.
If you have other CG devices like CGDI BMW or CG Pro, we can bind for you to have 3 tokens 180 days.

And when you need more tokens, please pay additional $4 Only One Token for CGDI MB.

CGDI MB Benz Key Programmer

CGDI MB Key Programming via OBD and IR:

CGDI MB Benz Key Programmer
CGDI MB Benz Key Programmer
CGDI MB Benz Key Programmer
CGDI MB Benz Key Programmer

CGDI MB ISM/DSM/ESM Function Display:

CGDI MB Benz Key Programmer

CGDI MB Auto Identification:

CGDI MB Benz Key Programmer

CGDI MB Read W212 EIS Data:

CGDI MB Benz Key Programmer

CGDI MB Read and Write Gateway Data:

CGDI MB Benz Key Programmer

CGDI MB Latest Update Information:

CGDI MB BenzMonster V3.1.0.0 (2021.04.14)

1. Fix known issues and optimize user experience.

CG-MB BenzMonster  V3.0.4.0 (2020.09.28)
1. Added CGDI keyless go key upgrade function.
2. Added the EIS ytpe of W215/220/230 for all key lost.
3. Added W215/220/230 for all key lost with fast collection.
4. Added the function of reading FBS4 EIS SSID.
5. Added the function of reading FBS4 key SSID.
6. Added the function of obtaining SSID from the instrument.
7. Improved the K-line EIS writing method.
8. Optimized the collection function of the old W221 all key lost.
9. Optimized the display of car computer and ELV wiring diagram.

CG-MB BenzMonster V3.0.3.0 (2020.08.31)
1. Improved the function of loading and saving files on the lock interface, and supported more file types.
2. Added the functions of erasing, writing, activating lock, and writing VIN of new & old EIS W164 without gateway.
3. Added the function of displaying the current voltage when it is insufficient.
4. Added the wiring diagram of the old EIS W164 when without gateway. (different from the wiring diagram of all lost.)
5. Fixed other problems.

CGDI MB V3.0.1.0 (2020.05.28)
1. Added CGDI MB keyless go key (76 version) resetting function.
2. Added the function of reading new BGA key to get EIS data.
3. Added operation tutorial viewing function.
4. Added Russian language. (Need to be authorized by dealer).
5. Added W203 ELV writing function.
6. Added the new W164 EIS (special) all key lost collection function. (The number of this W164 EIS is 164545, but the casing is new.)
7. Optimized interface layout and fixed BUG.

CGDI MB V3.0.0.0 (2020.05.06)
1. The mileage repair function is now divided into four independent modules:
FBS3 mileage repair (released)
FBS4 mileage repair-install hardware filter(-2018) (released)
FBS4 mileage repair-install software filter (-2018)(this update adds features, need to be used with mileage repair adapter)
FBS4 mileage repair-restore factory settings (-2018)(this update adds functions, no disassembly)
The above functional modules require authorization before they can be used, please contact customer service for details.
2. Unified server query interface to optimize network connection stability.
3. Optimize the key reading process for a better experience.
4. The main interface adds technical support contact information.
5. Other optimization and problem repair.
This update is a simultaneous update of the software and the server. The old version of the software will not be available after the new version is released.

CGDI MB Customers Feedbacks:

 -W220 first test, Read Blank Key, Read Write Erase key OK, read EZS and Password from Key...works
 -Tested on W212
  Read EZS ---> OBD work Fine
  Calulating PW from EZS ---> Work fine Online Server
  Key Calculating ---> v041 & v051 Work fine online Server
- Mercedes W212 2010 e250 Petrol Automatic works
- Mercedes W221 2010 Facelift S600 V12 works
- W207 on bench OK, 11 minutes
- W203 2004 spare key making takes about 13 minute when begining to programming new key. Read pass NEC key by IR and calculate PSW Key still working after get PSW.
- Test with my W209 545 31 08 on bench as add key: 15mins all done. Trying all key lost, failed. But a friend do with W209 545 05 08 succes PSW by IR without gayeway
- W246 2014 FSB3: Add key succesful in 15mins
  W219 2008: Add key also 15min OK
- W221 2008 with key v57 from Japan: Add key success after 30min, get PSW in the 2è upload.
W221 2010 Facelift Work too
2007 w221 from Japan: Add key on bench,good and very fast 10min got pass
Add Key on W221 2007, i was complete in ~12min. CGDI is very fast,Upload collect data after 2 or 3 min show me PW
Class C W203 2005 adding key on car.Spare key made in under 10 minutes.
W204 2010 adding key on bench.Total time about 15mn.
W212 2012 all key lost programming work!
CGDI MB tool works good to do W207 W204 lost keys on bench.
CGDI work not on all by OBD
W906 Sprinter don't work (CGDI Supports W906 only CAN BUS not K-line)
W230 SL55 AMG 2006 dont work (CGDI supports W230 CAN BUS, you can send EIS and CGDI MB tool to factory to add K-line)

CGDI MB FAQs:

Q1: need to know more info about yellow cable, its to kline but where to connect it when using obdii and when using on bdm?
A1: When using OBD, need disconnect ESL connector and look for K line pin to connect Yellow clip. When using on bench: look for EZS-ELV wiring and plug the clip to kline pin

Q2: What about mileage correction (reset to 0)? vvdi vs cgdi
A2: CGDI can show mileage from EZS, new software come out, updated

Q3: When we have CGDI tool working all by OBD why lads want the tool to work on the bench???
A3: For example if car is some further from workshop and you must spent time driving to the car or customer is just TOO far to drive, so then he can sent EIS or drive by himself bringing EIS it with him at workshop. It's time saver and what if tool will not work via OBD? You will loose many time driving ex. 30 miles x2. If you have on bench, you can work at your place without risk of wasting time. Also calculating psw at the place of car might last 30 minutes, 1 hour in all keys lost? It's much time to sit in the car + you have to take care of battery charger. If you have on bench, you can drink a coffee or a beer if you want and enjoy the waiting time. Still no tool which can do all merc by OBD anyway.

CGDI MB Package List:

1pc x CGDI MB Multiplexer
1pc x OBD Cable
1pc x IR Adapter
1pc x NEC Key Adapter
1pc x USB Cable

Functions of Each Adapters:
CGDI MB Benz Key Programmer

CGDI MB Benz Key Programmer
CGDI MB Benz Key Programmer
CGDI MB Benz Key Programmer


CGDI-MB
