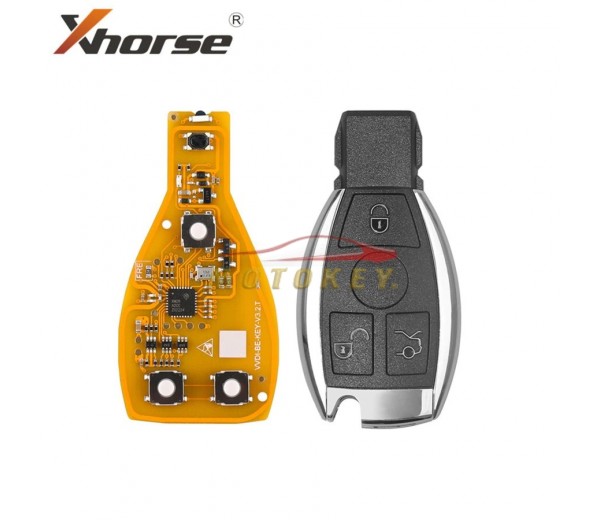

Xhorse M-Benz 3 Button Remote Key Complete - No Tokens

Xhorse M-Benz 3 Button Remote Key Complete - No Tokens - Yellow Board

VVDI MB BE Key Yellow Board vs Green Board

The yellow board does not contain 200 bonus points, but cheaper than the green board.
Works the same, only colour difference.

• Super Stable

• Frequency changeable 315Mhz/433MHz

• Reusable - you can reset it

• Programmed by all kinds of MB key programmer, such as Autel IM608, CGDI and VVDI MB, Key Tool Plus, Digimaster-III ,CKM100, AK500, MBE MB-KEY OBD2, NEC-57 MB-PRO and so on

• Can use for Mercedes smart key 3 button or 2 button key and it worked lock/unlock/ trunk.

• Xhorse brand, superior quality.

• Applicable chip models:705 Moto(1997-2000) NEC(2001-2005) NEC(2006-2010) BGA(after 2011)

The ways to reset the frequency:
1) with the PCB SMD resistor.Weld the 1K SMD resistor on the position the arrow points and the frequency is 315MHZ, after remove it will be 433.92MHZ.
2) Change frequency between 315MHz and 433MHz with VVDI MB Tool.



Xhorse VVDI BE Key Pro Features:

More compatibility
New design
High Stability
High reliability
Digital Signature
High quality with a reasonable price
No points will be accumulated

VVDI BE Key Pro improvements:

1. Fix the bug that W164/W639 EIS data doesn't synchronize the key.
2. Fix the bug that the BE key fails to turn on the ignition after repeat try.
3. Fix the bug of trunk remote open
4. Fix the bug that the BE key only sent RF signal for one time, after update, the RF signal can be sent for two times when press and release the key.
5. Modify the rolling algorithm, fix some errors of BE key.
6. Add pre-roll algorithm: the HASH value can roll ahead.
7. Adopt car-grade quartz crystal, improve infrared communication stability.
8. Boost the infrared signal when you press the button.
9. Support resetting the key frequency between 315MHZ and 433.92 in the way of VVDI MB tool or the PCB SMD resistor
Note: VVDI MB tool has priority over the SMD resistor, which means if you reset the key frequency with VVDI MB tool at first, the SMD resistor won't work, and you need to use the VVDI MB tool to erase the frequency then use the SMD resistor.

IMPORTANT NOTE!

This is a blank key which may require cutting and programming with specialised equipment. You would have to take it to somebody who specialises in key cutting and programming to be able to make it work on your particular vehicle.

Please ensure you purchase the correct key as cut / programmed keys cannot be accepted for returns!
