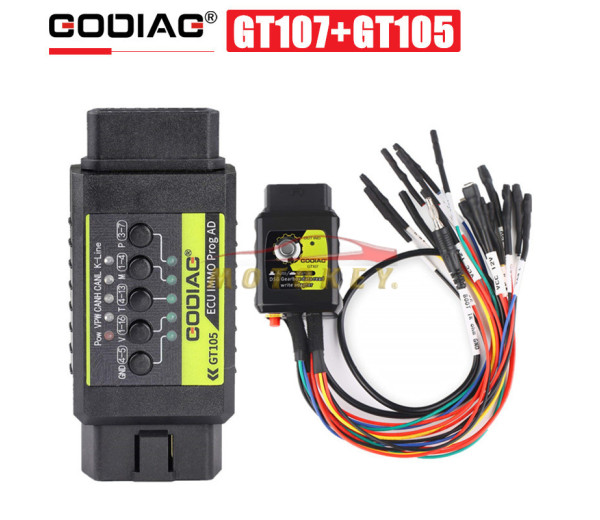

GODIAG GT105 ECU IMMO Kit Plus GT107 DSG Gearbox Data Read/Write Adapter for DQ250, DQ200, VL381, VL300, DQ500, DL501

Reference: ZX-21

GODIAG GT107 ECU IMMO Kit is a DSG gearbox connection adapter. DSG Gearbox maintenance engineers can clone, diagnose and repair DSG Gearbox ECU and can also read, write and adjust data for DSG Gearbox ECU via PCMFlash, PCMTuner, and Kessv2, etc.

Weight 0.50 kg

R1,650.00

By buying this product you can collect up to 165 loyalty points. Your cart will total 165 points that can be converted into a voucher of R16.50.

Reliable, Safe and Secure shopping with us.

Country-wide Courier / Post available

Returns are welcome. T&Cs apply.

Description
Product Details

Godiag GT105 Breakout Box Plus GT107 DSG Gearbox Data Read/Write Adapter

This adapter has automatic and manual selection for PCMFlash software. For data reading and writing, you can choose “Auto”, and for diagnosis you can choose ”Manual”. For other software kessv2, DQ200, DQ250, DQ500 you can also choose “Manual”.

Moreover, with the car battery power, the adapter can directly read and write DSG Gearbox data and you can clearly check the communication status during the data reading and writing process.

GT107 DSG Gearbox Data Read/Write Adapter Highlights:

1. Read/write DSG Gearbox Data
2. To read and write DQ250, DQ200, VL381, VL300, DQ500, DL501 Gearbox TCU
3. Read/write DSG gearbox data with PCMTuner module 58/KESS v2/KTM bench etc
4. GT107 Has Auto and Manual selection for PCMFlash software

GT105 ECU IMMO Prog AD Features:

-A full-protocol ECU connection line for ECU programming power adjustment
-OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.
-PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.
-Standard OBD2 independent PIN4, PIN5.
-Pure copper female seat supports repeated insertion and removal, and has a long service life.
-Battery clip treated with environmentally-friendly salt spray, with a thickness of 0.5mm.
-The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.
-The DC connector has a resettable 7A fuse.
-DC power interface, dedicated laboratory power connector.
-OBD2 universal jumper of good quality.

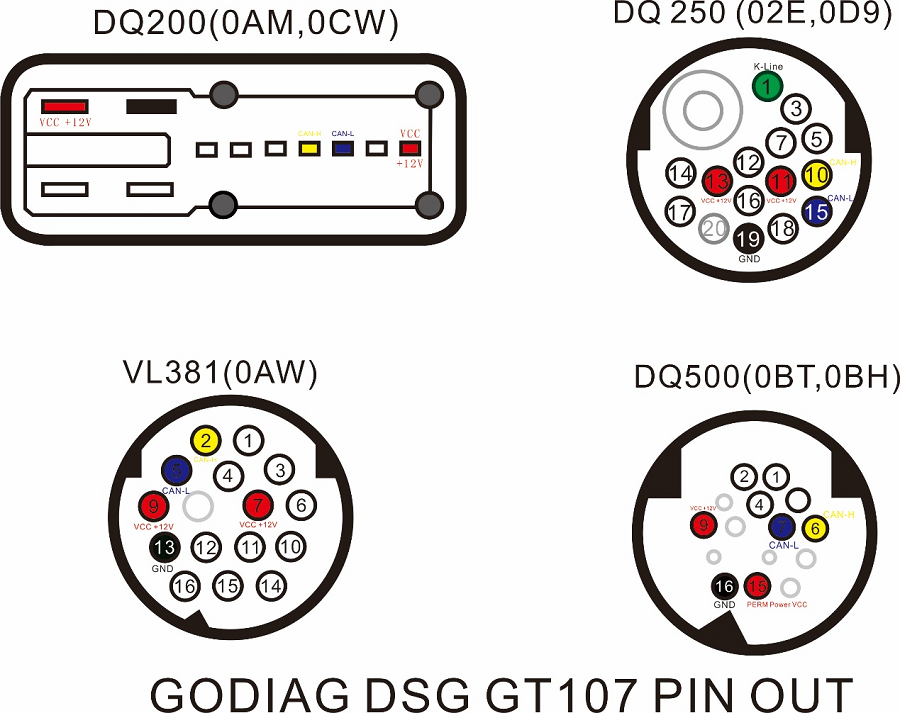

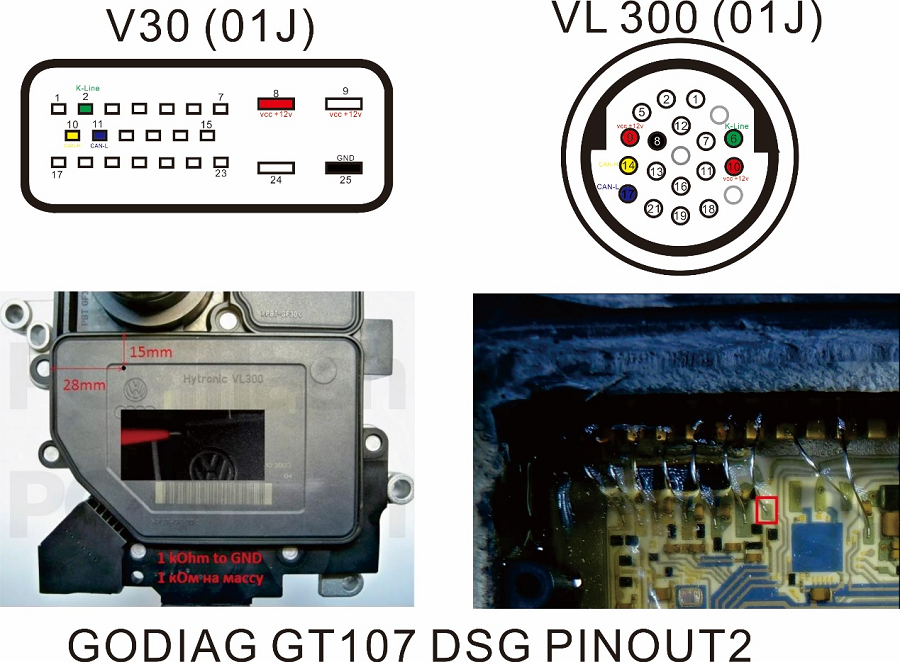

Godiag GT105 Gearbox Pinouts:

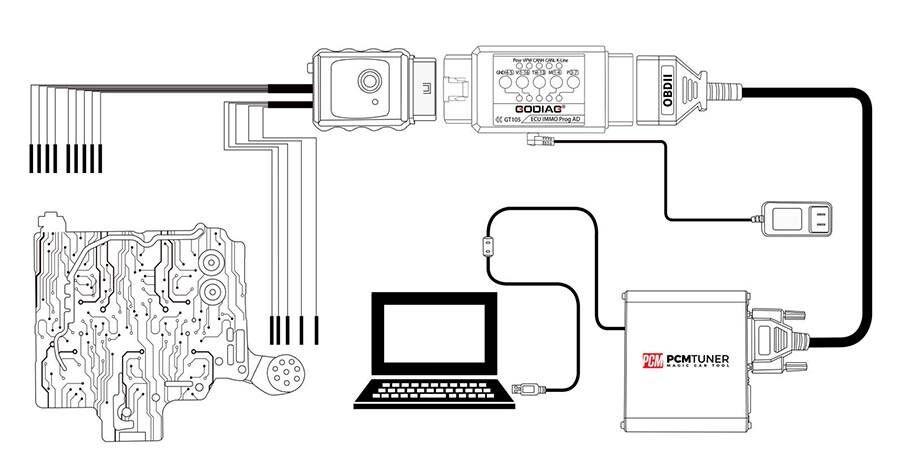

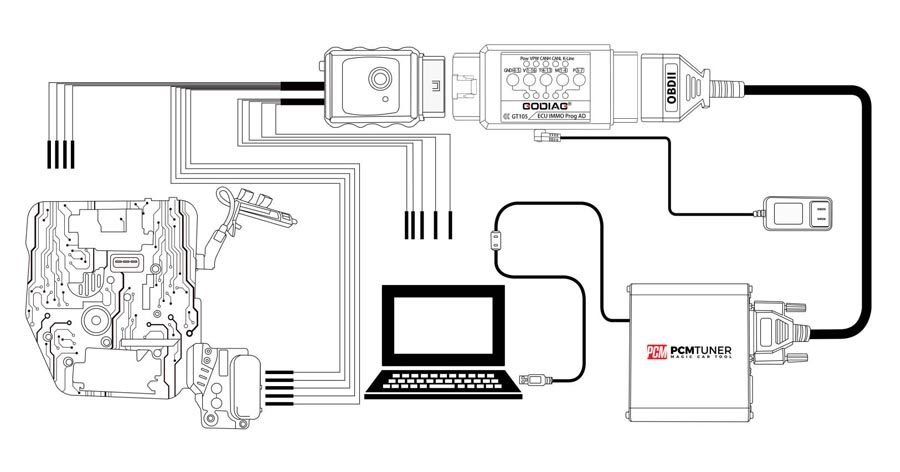

Connection Diagram & Operation:

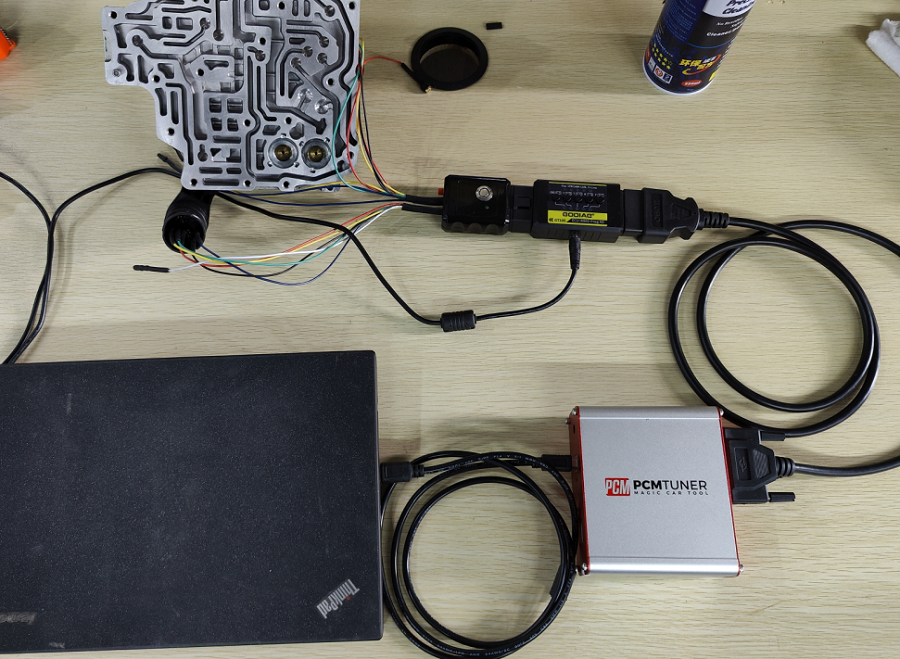

1.Connect GODIAG GT107 Adapter to PCMtuner

Easy Operation:

1. Connect Godiag GT107 to the gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501.

2. Connect Godiag ECU IMMO Prog AD and connect 12V 2A DC power supply.

3. The GODIAG GT107 analog ignition switch is in "Auto" mode if it is not pressed, and it is in "Manual" mode if it is pressed down(Note: Please select the corresponding mode in the software for data reading)

4. Connect PCMFlash, PCMTuner J2534passthru.

5. Connect the computer to open the software and select "Auto".

Connect GODIAG GT105 Adapter to PCMtuner:

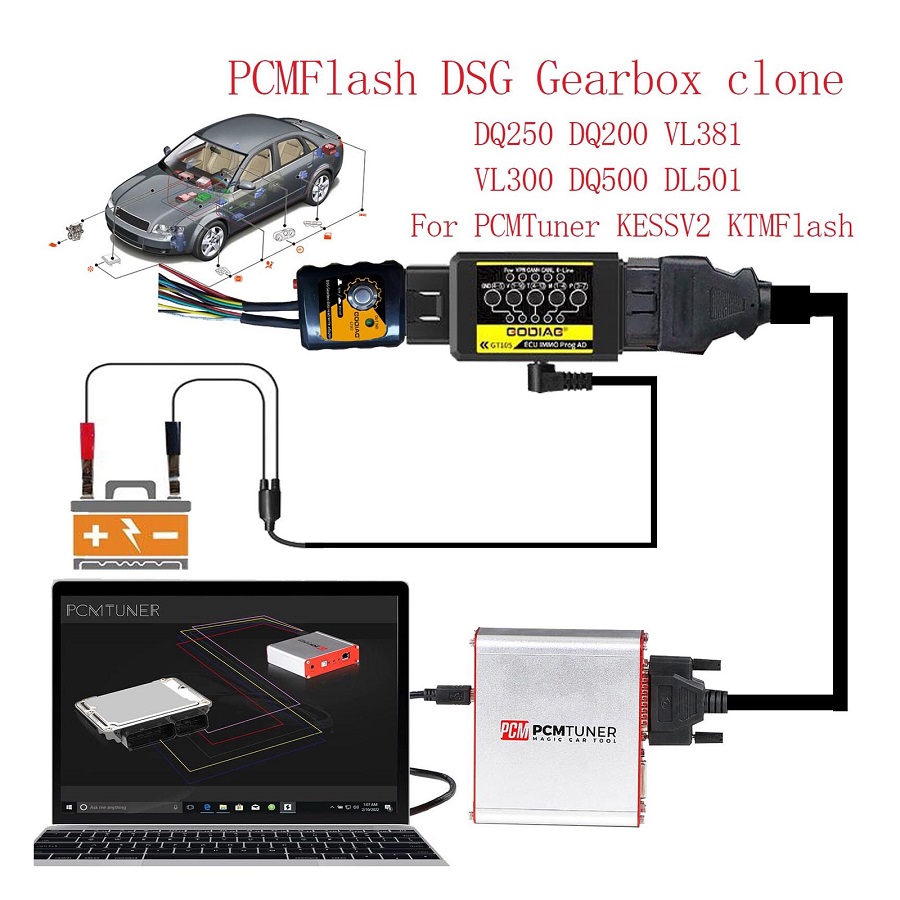

3.Godiag GT107 Used on the Car

Easy Operation:

1. Connect Godiag GT107 to the gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501.
2. Connect the Godiag ECU IMMO Prog AD and connect the vehicle battery.
3. The Godiag GT107 analog ignition switch is in “Auto” mode if it is not pressed, and it is in “Manual” mode if it is pressed down(Note: Please select the corresponding mode in the software for data reading).
4. Connect PCMFlash, PCMTuner J2534passthru.
5. Connect the computer to open the software and select “Auto”

GT107 can be used to renew Mercedes 7G Gearbox, BMW 6HP EGS with CGDI/VVDI devices

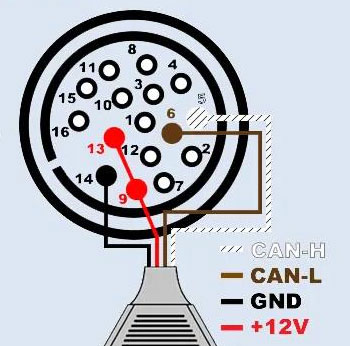

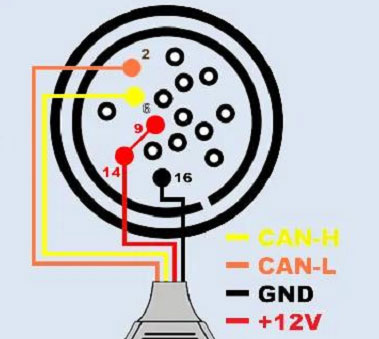

GT107 Mercedes 7G Gearbox Pinout

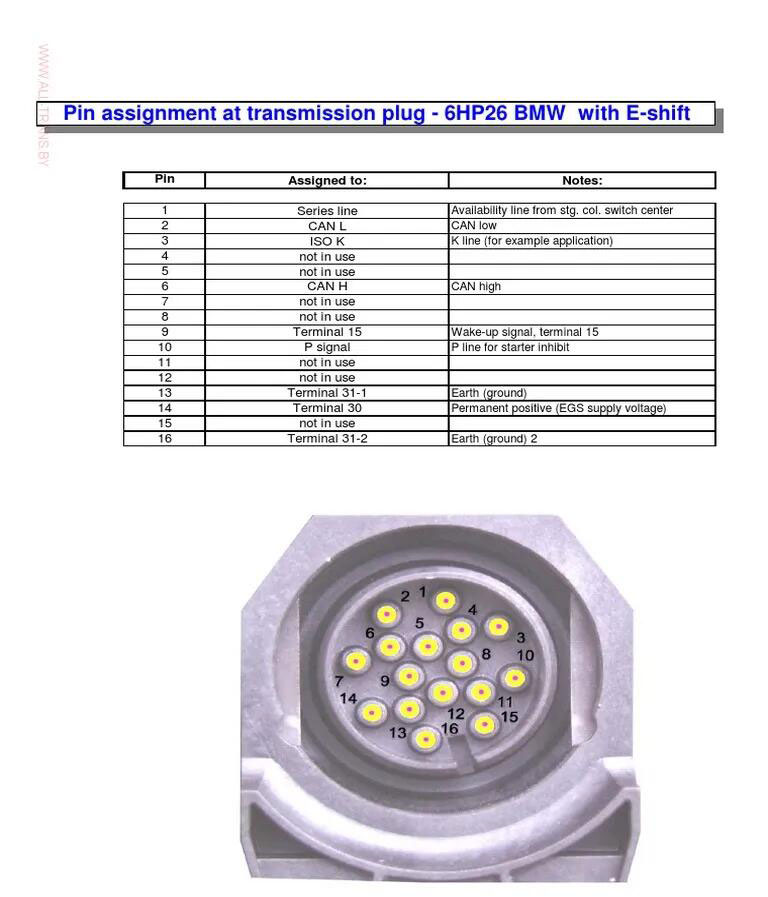

GT107 BMW EGS 6HP Pinout

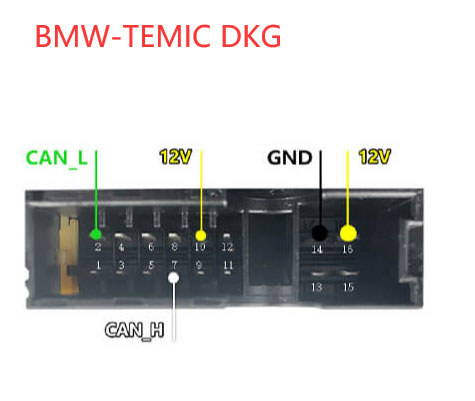

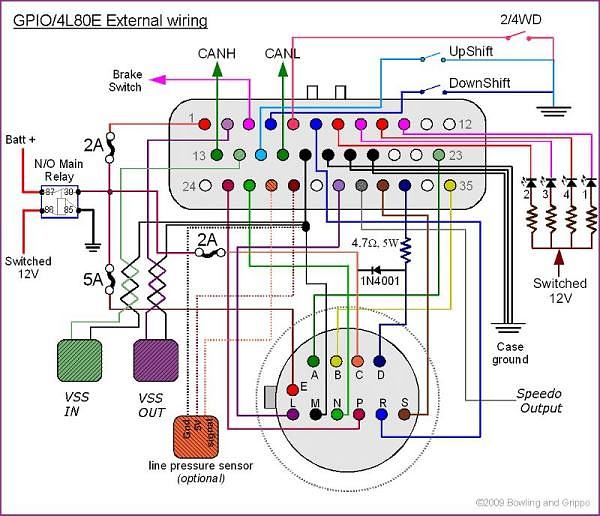

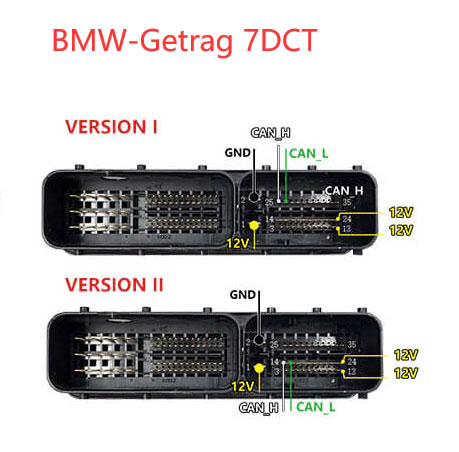

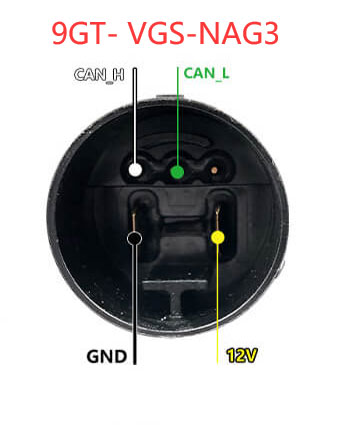

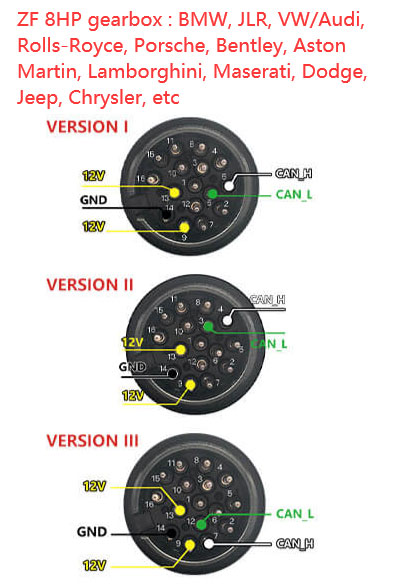

GT107 can also be used to diagnose/renew Benz VGS (722.8), Benz 9GT (VGS-NAG3) gearbox, GM GPIO 4L60E, Volvo Gearbox, BMW 7-dual-clutch (GETAG 7DCT) gearbox, BMW Temic DKG, ZF 8HP gearbox with proper devices.

GT107 VGS 722.7 (A168) Pinout
3.- K line
5.- CAN High
6.- VCC 12+
7.- GND -
8.- CAN low

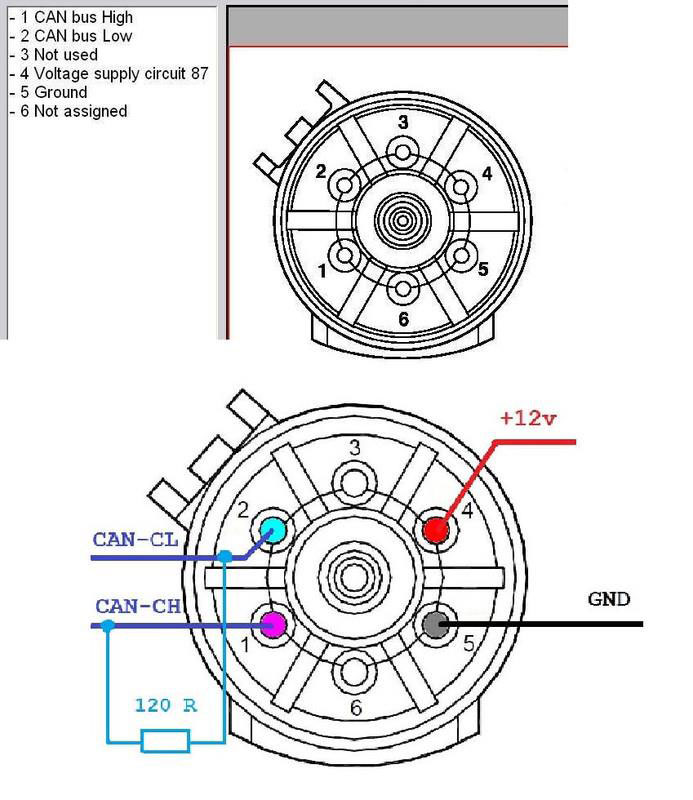

GT107 MERCEDES-BENZ TEMIC VGS (722.8) Pinout
