VXDIAG VCX FD for GM TECH2WIN Ford Mazda IDS 2 in 1 OBD2 Diagnostic Tool Supports CAN FD Protocol

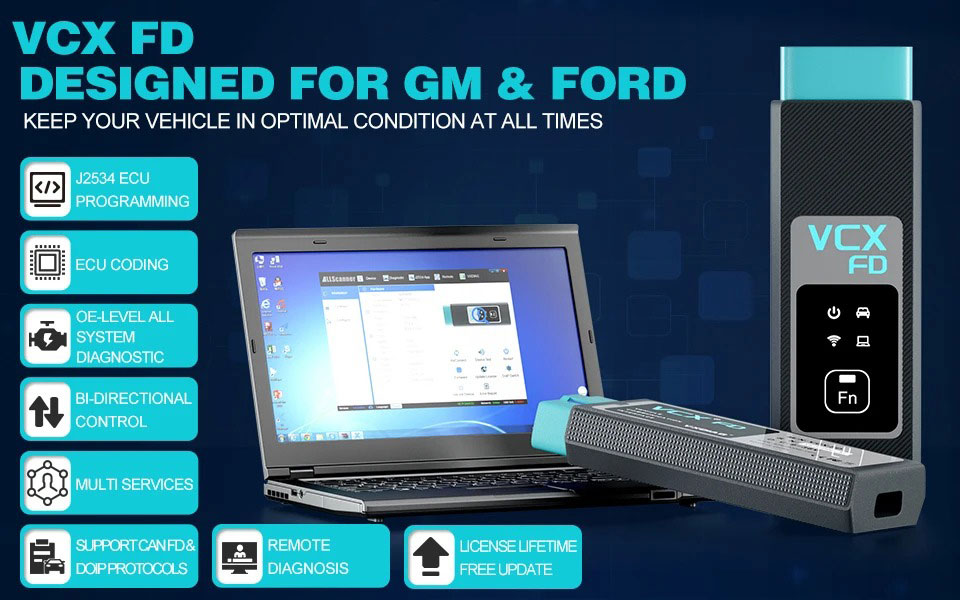

VXDIAG VCX FD for GM Ford Mazda 2 in 1 Supports CAN FD Protocol

VCX-FD is a smart vehicle diagnostic interface designed by ALLSCANNER VXDIAG, which represents the diagnostic technology of the next generation. The product uses a newly upgraded dual-core high-speed processor to fully support multi-channel CAN-FD / DOIP and traditional diagnostic protocols, and compatible with more original diagnostic software, with multi function.

Software List:
GM GDS2
Tech2win
Ford IDS V130
MAZDA IDS V131

VCX FD Highlights:

Supports CAN FD and DoIP protocol
Supports USB Type C, WiFi and WLAN Connection
J2534 passthru for online programming

VCX FD Features:
1. Dual-core architecture works together to achieve stronger communication performance

• The 550MHz ARM protocol processor implements CAN-FD and all traditional vehicle bus protocols.
• 560MHz MIPS network processor implements DoIP super diagnostic gateway.
• The dual-core processor communicates via 100M Ethernet, with high bandwidth and low latency.
• The diagnostic communication speed is several times higher than that of the previous generation product.
• Dual operating systems run concurrently, and the software runs more stably

2. The RTOS real-time operating system ensures multi-task and high-concurrency communication of the vehicle bus protocol.

• The OpenWrt network operating system flexibly connects multiple network interfaces and vehicles.
• Support a more comprehensive vehicle bus protocol

3. Integrated OBD smart protocol multiplexer chip, all pins can intelligently switch any protocol.

• Supports 3-channel CAN-FD multi-channel concurrent communication, supporting up to 5M Bps high-speed communication.
• Supports ISO-13400 standard dual-channel DoIP interface Option 1 and Option 2.
• Flexible and easy-to-use connection methods

4. The host communication interface supports multiple connections such as USB / RJ45 / WLAN, which is flexible and easy to use.

• Built-in wireless routing mode, the diagnostic computer can be directly connected to the device wirelessly.
• Supports wireless workstation mode, the device can be connected to a wireless LAN, and any computer can connect to the device.
• Supports mapping vehicle DoIP Ethernet to WLAN for wireless DoIP diagnostics.

5. Brand new appearance design

• It adopts an all-in-one design with integrated OBD-II interface, making it easy to plug and play.
• The reinforced Type-C interface prevents shaking and falling off, making the connection more reliable.
• More powerful vehicle diagnostic equipment

6. More comprehensive original vehicle diagnostics

• VCX-FD is currently compatible with 15 original factory diagnostic model brands.
• After the hardware update, it fully supports new models and new original factory diagnostic software based on CAN-FD and DoIP.
• A variety of advanced diagnostics and programming functions reach factory level, even faster than original equipment.
• Supports one-click installation, uninstallation and upgrade of original factory supported drivers, easy to use.

7. Updated international standard API interface

• SAE-J2534-1/2 PassThru V04.04 & V05.00
• ISO-22900 D-PDU API for MVCI
• RP-1210A/B/C API for VDA
• Full platform API interface available (Windows / Linux / Android)

8. J2534 original ECU programming function

• ECU software upgrade and calibration.
• ECU replacement flashing and programming.
• J2534 controllable programmable voltage output.

9. Dual-mode intelligent remote diagnosis

• Super remote diagnosis only requires the device to be connected to the Internet to achieve original factory online diagnosis.
• Compatible with remote diagnosis, it can support remote diagnosis of a variety of special function equipment.
• The device supports one-click network distribution function and quick access to the remote diagnosis platform.

VXDIAG VCX FD Scanner Function List

OE-Level All System Diagnostic

By penetrating all available ECUs, including but not limited to PCM, ECM, EPS, PDM, TPM, BCM, ABS, SCCM, etc., VCX FD retrieves information and performs OE-level diagnostics on all available vehicle systems, like read and clear codes, View Data Stream and Freeze Frame and read vehicle information, ECU Replacement. It not only enables you to troubleshoot promptly but also makes you customize the configuration.

Bi-directional Control Active Test

The process of sending and retrieving information from a vehicle control module with a device is known as Actuation Test or Bi-Directional Control.

VCX FD is with this capacity. The main aim of the actuation test function is to request the control module to perform a specific function including system tests, actuator tests, functional tests, inspection tests, reprogramming or re-initialization, thus saving diagnostic time.

J2534 ECU Programming

VCX FD J2534 Pass-Thru ECU Programming Tool can be used with PC to perform ECU programming features. It helps you program blank ECUs, refresh high-end functions, update vehicle ECU software etc., greatly improving the applicability of vehicles.

Work with PC, VCX FD is fully compliant with SAE J2534-1 & J2534-2 standards, supporting major OEM diagnostic tools, it speeds up reprogramming and diagnostics, saving time and boosting efficiency.

We don't provide the original online account for programming.

Advanced ECU Coding / Configuration

VCX FD can perform many advanced features with OEM software, such as refresh hidden functions, disable the annoying functions, enhance vehicle performance, customize OE-settings, reprograms the adaptive data for certain components after repairs or replacements, customized configurations for high-end models and so on to enhance fuel efficiency and ensure safe driving.

We don't provide the original online account for coding.

Complete Services

For various scheduled service and maintenance include Maintenance Light Reset, throttle learning, steering angle learning, brake pad reset, tire pressure reset, ABS exhaust,battery matching,gear information learning,injector coding, DPF regeneration,headlight matching, gearbox learning, suspension matching ,Sunroof initialization, A/F adjustment, electronic pump start, release transportation mode, tire modification, door and window calibration, urea reset, NOx reset,start-stop setting, language setting, seat calibration, shielding failure, etc.

How to Set Up & Use VXDIAG VCX-FD?

Let’s start the software installation on WINDOWS system:

1. First download and install software (we don't provide the link)

2. Install the latest VX MANAGER version via www.vxdiag.net

4. Start the VX Manager. Make sure you your computer network is good. Connect your device by USB cable/WiFi to computer and OBD2 Socket to your ECU Bench connector or Your car’s OBD2 Port.

Install Passthru driver. Check your device license.

5. Turn on the car ignition. You can start to diagnose the car.

Installation Tips: Please turn off anti-virus software before install.
