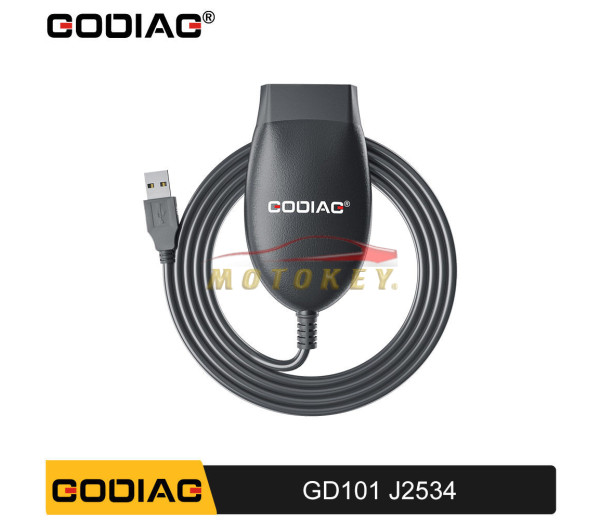

GODIAG GD101 J2534 Passthru Ford Mazda/ Honda / Toyota / Renault / Forscan / ScanMaster / SDD/ ELM327/ J1979

Reference: ZX-38

1. GODIAG GD101 openport 2.0 J2534 is compatible with Honda HDS 3.104.024, Toyota Techstream V17.30.011, JLR SDD V163, Forscan 2.3.48, scanmaster v2.1, VAG ODIS 9.1.0 and Renault Clip V227/V230.
2. Works with J2534 Passthru and ELM327
3. Has the similar functionality as Tactrix Openport 2.0

Weight 0.15 kg

R650.00

By buying this product you can collect up to 65 loyalty points. Your cart will total 65 points that can be converted into a voucher of R6.50.

Reliable, Safe and Secure shopping with us.

Country-wide Courier / Post available

Returns are welcome. T&Cs apply.

Description
Product Details

GODIAG GD101 J2534 Passthru Diagnostic Cable for Ford Mazda/ Honda/ Toyota/ Renault/ Forscan/ ScanMaster/ SDD/ ELM327/ J1979

GODIAG GD101 J2534 Highlights:

1. Support J2534 and ELM327 mode in one device. Switch mode automatically.
2. Compatible with Honda HDS 3.104.024, Toyota Techstream V17.30.011, JLR SDD V163, Forscan 2.3.48, scanmaster v2.1, VAG ODIS 9.1.0 and Renault Clip V227, Renault Can Clip V230.
3. GODIAG GD101 J2534 has the similar functionality as Tactrix Openport 2.0.
4. More speedup. Faster communication and reprogramming.
5. More stability. Never let you down while reprogramming.
6. Portable and convenient. Small package and easy to carry.
7. Wok on Windows 8/10/11, 32/64bit
8. Multi-Languages Available:
ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,
Russia, Greece, Chinese

Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese

Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese

JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean

Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian

Scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian

Pcmflash: English, Russian

Can Clip Renault: English, German, Danish, Spanish, Finnish, French, Italian, Norwegian, Dutch, Portuguese, Romania, Swedish

GODIAG GD101 J2534 OBD2 Openport 2.0 Features:
1. Support most all of J2534 compatible software (HDS, TIS, ODIS, JLR SDD, ...).
2. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster...).
3. Support ECU reprogramming in J2534 mode with programming voltage.
4. Supply free software for diagnosing J1979 compatible vehicles.

Notice:

1. Godiag Software Free Download:
Free Download Godiag J2534 Driver V2.3
2. Not Support Win7 System

GODIAG GD101 J2534 Supported Car Models:

1.JLR SDD Software for Land Rover/Jaguar
Support for L316, L319, L320, L322, L359, L538 Land Rover vehicle lines.
Support for X100, X150, X202, X250, X350, X351, X400 Jaguar vehicle lines.

2. HDS Software for Honda
Support for Accord, Civic, Crv, City, et al.

3. Toyota
Support for Camry, Rav4, Carolina, Prius, Lexus

4. ODIS VAG
Support for Vw, Audi, Seat, Skoda

5. GM GDS2 Software
Support for Buick, Chevrolet, Cadillac, etc.

GODIAG GD101 J2534 Function List:

Software	Brand	Year	NOTE
Toyota TIS Techstream	Toyota, Lexus	1995-2022	Free download and activate software, update by link
Honda HDS 3.102	Honda Acura	1995-2022	Does not support non-#7 K-line, update by link
ODIS-S, ODIS -E	VW Audi Skoda Seat	1995-2022	For J2534 VAG only. Don't support CAN FD protocol, Don’t support Ignition switch voltage detection
Forscan 2.3.48	Ford Mazda Lincoln	1996-2022	Cannot do 3, 11 medium speed CAN
Scanmaster V2.0		1996-2022	Free download and activate software
PCMFlash V1.2.0	67 modules	1996-2022	Yes, test by your side
J1979Tester		1996-2022	Free Honda immo code calculation
ELMConfig		1996-2022	Yes, test by your side
JLR SDD2	Jaguar Land rover	2006-2016	Support for L316, L319, L320, L322, L359, L538 Land Rover vehicle lines. Support for X100, X150, X202, X250, X350, X351, X400 Jaguar vehicle lines.
GDS2	GM Buick Cadilac Chevlert	1995-2022	Yes
Renault Clip V227/V230	Renault	2005+ Renault with Can Bus Protocol	Free download by link

Notice : Can't support MS-CAN

GODIAG GD101 J2534 Protocol Configuration:

1. ISO15765 (Standard/Extended frame).

2. ISO9141.

3. ISO14230.

4. J1850 PWM (Support IFR and 2X speed mode).

5. J1850 VPW (Support 4X speed mode).

6. Programming voltage.

7. Short to ground.

8. ELM327 with command set version 1.3a

Notice :
Can't support MS-CAN

GODIAG GD101 J2534 Hardware Configuration:

1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).

2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).

3. J1850 PWM (OBDII PIN 2 and PIN 10).

4. J1850 VPW (OBDII PIN 2).

5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).

6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).

7. Dimension(L*W*H): 95mm*55mm*23mm

8. Environmental:-20℃-45℃(-4℉-113℉)

9. Vehicle voltage requirements: 8-18V DC

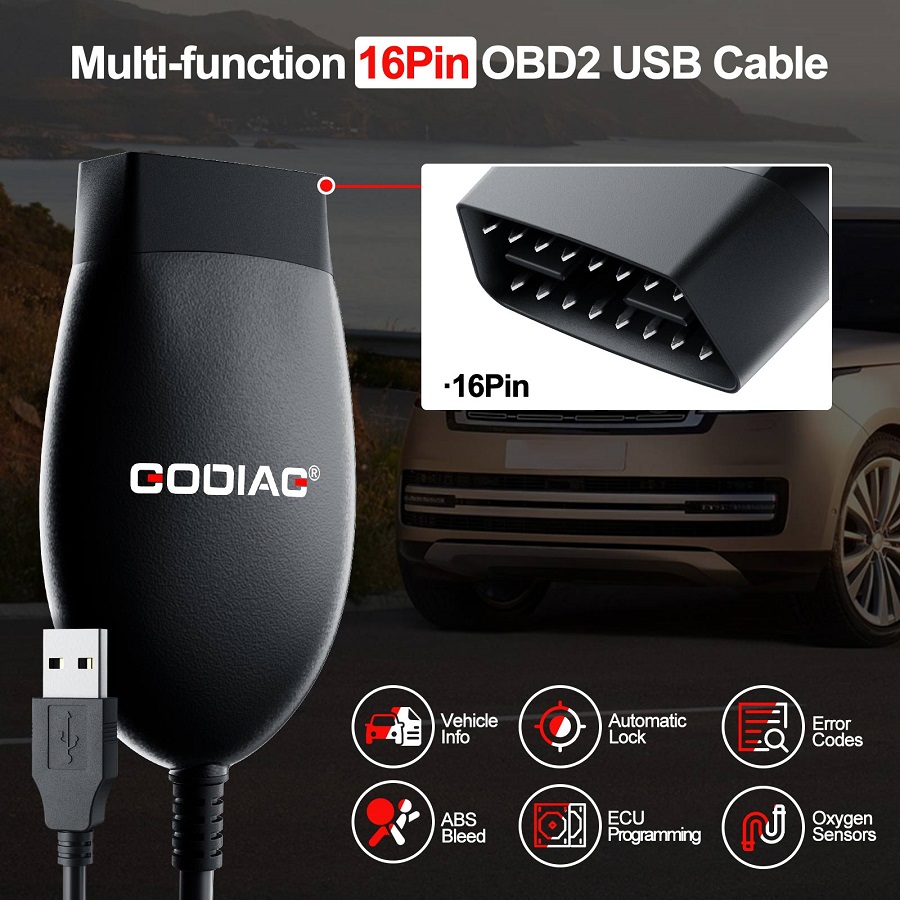

10. Vehicle connection: Molded DLC3(OBDII-16)

11. Host connection: USB 2.0

Godiag GD101 J2534 vs. VXDIAG VCX SE vs. SVCI J2534:

Product	Godiag J2534	VXDIAG VCX SE	SVCI J2534
Software	Ford IDS/ Mazda IDS Toyota Techstream/ Honda HDS/ Forscan/ VAG ODIS/ ELMConfig, Forscan, ScanMaster/ Volvo VIDA/ GM GDS2 Renault Can Clip	Ford IDS/ Mazda IDS/ Toyota Techstream/ JLR SDD/ Honda HDS/ Subaru SSM3/SSM4/ Benz Xentry/ Volvo VIDA/ BMW ISTA/ VAG ODIS/ Pcmflash/ Forscan/ PCMHumer	Ford IDS/ Mazda IDS/ Toyota Techstream/ JLR SDD/ ScanMaster-ELM V2.4.12/ PCMSCAN V2.1/ ELMconfig/ Forscan/ FOCCCUS/ FF2
Operating system	Windows 8/10/11, 32/64bit (Don’t work on Win7)	Windows 7/ 8/10/11, 32/64bit	Win7 64bit, Win 8, Win 10
J2534 passthru	Yes	Yes	Yes
Online Module Programming	No tested	Yes, need an online account, Ford, GM, Honda, Toyota, etc online programming tested ok	Yes, need an online account. Only Ford/Mazda online programming tested ok
License	No	Customize license	No
Firmware update	No	Update online	No
Software update	Update by Link	Update by link (except Benz and BMW thru HDD/SSD)	Update by Link
Ford trucks 12 V 1998-2006 with PWM protocol ( F series supported)	Unknown	Not working on some F series pre-2010	Yes
