Woyo JLR Gear Knob Tester - PL005

WOYO Land Rover & Jaguar Gear Shift Module Repair Kit

Introduction:

The plastic fastener inside the GEAR SELECTOR MODULE (GSM) of Landrover & Jaguar beaks and  gets damaged easily,which will cause the GSM to be stuck or unusable to use.

WOYO Landrover Jaguar GSM tester kit includes metal fasteners for replacement.

After repair, use the tester to test GSM without needing to assemble it to vehicle, Which eliminates repeated disassembly, and waste of time.

Solve the problems as:

1. Knob unable to rise
2. Knob unable to rotate

Common fault codes:

P176C -11 - Transmission Range Selector Lock Control Error

Function:

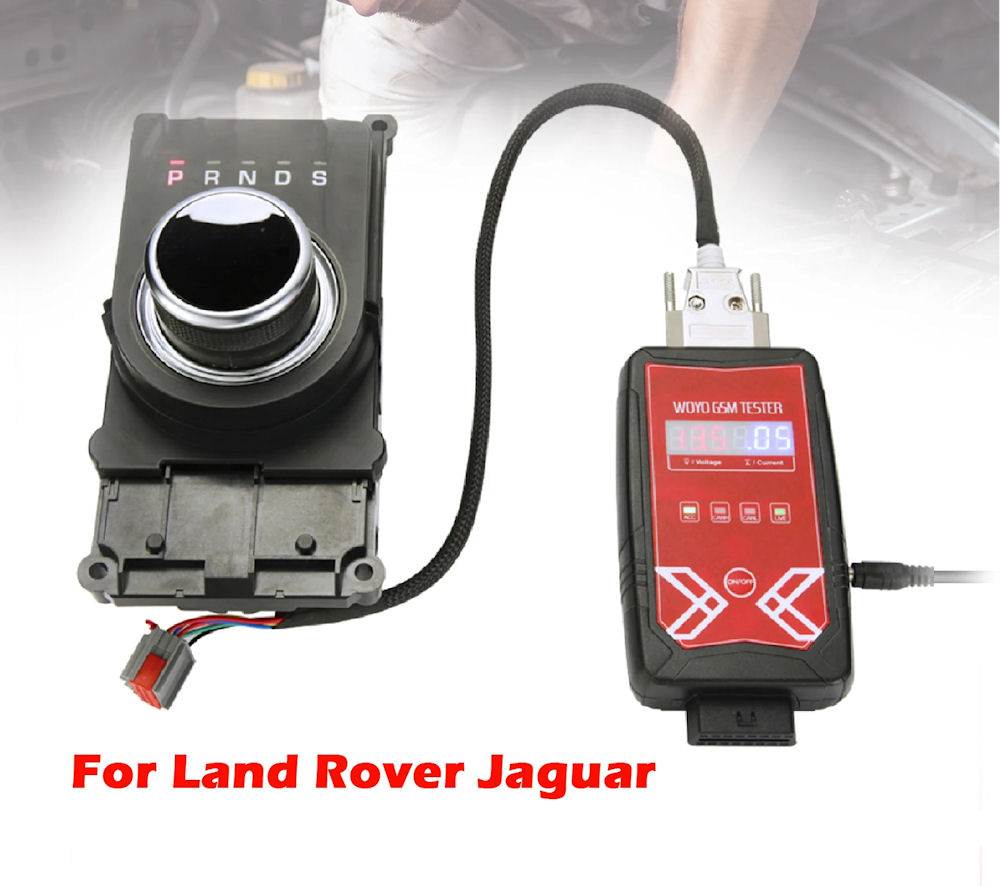

1. Control the GSM up and down without it being plugged on the vehicle - bench testing.

2. Identify vehicle model automatically , saving the query time. No need to for special software.

3. Simple operation, one button control of up and down, gear switching supported.

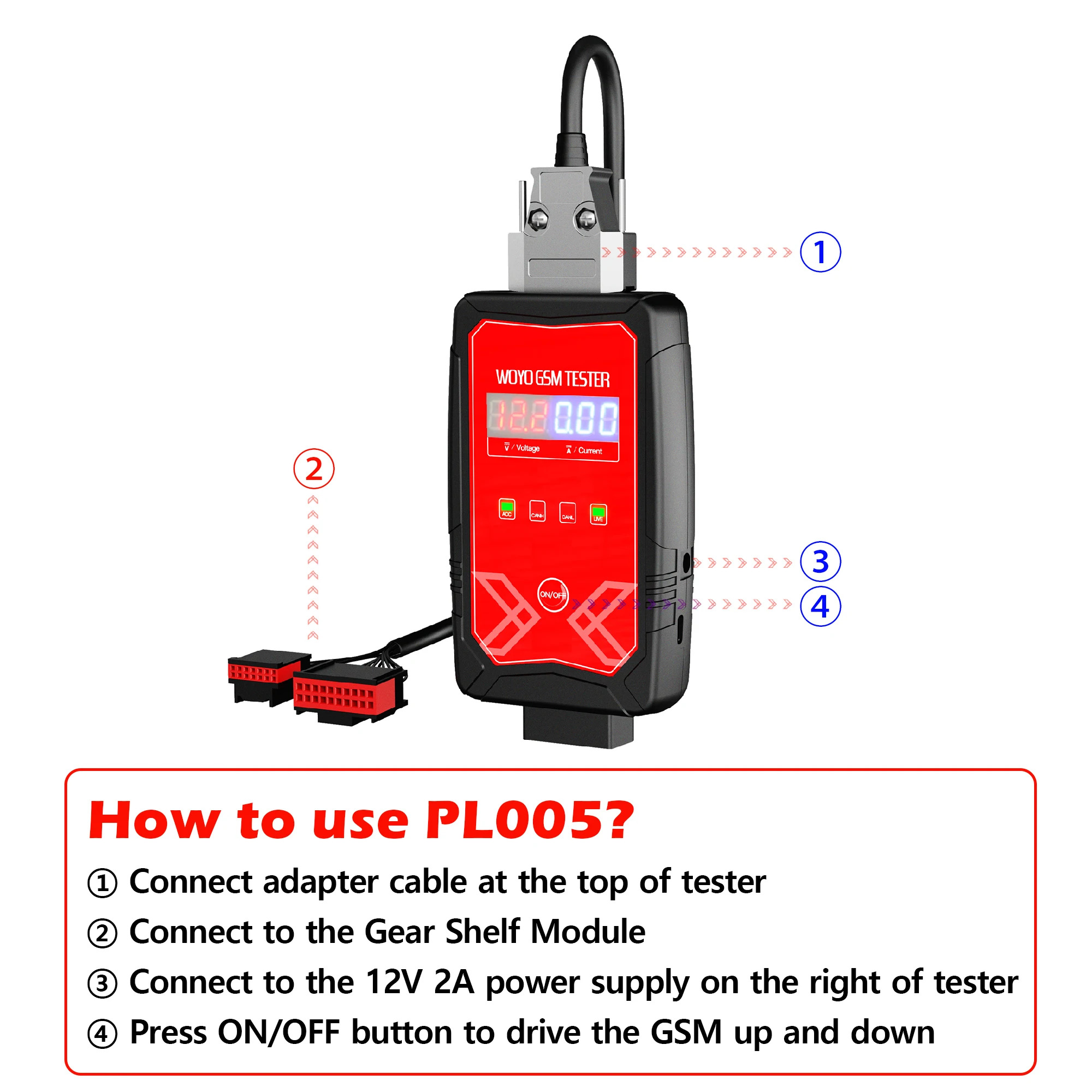

How to use the PL005?

① Connect adapter cable at the top of tester

② Connect to the Gear Shifter Module

③ Connect to the 12V 2A power supply on the right of tester

④ Press ON/OFF button to drive the GSM up and down

Supported model list:

Landrover:

Freelander,Freelander(New),

Evoque 6 Speed,Evoque 9 Speed,

Discoverer 3,Discoverer 4,Discoverer 4(Old),Discoverer 4(New),Discoverer 5,Discoverer Sport,Defender,Defender(New),

Range Rover(Old),Range Rover,Range Rover(New),Range Rover Sport(Old),Range Rover Sport,

Range Rover Sport(New),Range Rover Evoque(New),Range Rover Evoque II,Range Rover Velar,

L319(EH22),L319(BH42),L405(CPLA),L405(DPLA),L405(EK52),L405(GK52),L405(HPLA),L462(HPLA),

L538(BJ32),L538(EJ32),L538(GJ32),L538(HJ32),L550(EJ32),L550(GJ32),L550(HJ32),L560(J8A2)；

Jaguar:

S-TYPE,

E-PACE,I-PACE,

F-PACE(Old),F-PACE(New),F-TYPE,F-TYPE(New),F-PACE,

XFL,XFL(Old),XFL(New),XJ,XJ(New),XJL,XJL(New),XK,XE,XE(Old),XE(New),XF,XF(XXX),XF(Old),XF(New),

X250(8X23),X250(DX23),X250(9X23),X260(HX73),X260(JX73),X260(GX73),X351(DW93),X351(GW93),X760(JX73),X760(GX73),X760(HX73),X761(HX73),X761(JX73)；

Packing List:

Main * 1

12 & 22pin Cable * 1

Lifting Gear Lever * 2
