OBDSTAR MT102 Gear Lever Drive Test Tool for Jaguar and Land rover Activate Gear Shift

OBDSTAR MT102 Jaguar Land rover Gear Lever Drive Test Platform

Nowadays, many cars have dashboards, audio, gear lever, handbrake modules, etc., which are activated by CAN communication with the relevant modules in the car to bring the mainframe into the drive state. This function can simulate CAN communication to activate the secondary power supply and bring the main unit into the drive so that the main unit can be tested and verified. It also eliminates the need to purchase a large number of boot platforms and wiring harnesses for each vehicle model, saving a large amount of money for the automotive mechanic.

What is OBDSTAR MT102?

MT102 is the latest Land Rover gear lever BENCH way drive test device developed by OBDSTAR, supporting many types of ECU versions, compact equipment, with special connectors, cheap, and is a good helper for auto electronic maintenance engineers!

Features

1. using STM32 processor, fast running speed.
2. supporting Land Rover/Jaguar gear lever drive, which can perform all gears switching with each other on the workbench.
3. using special connector for gear lever, safe and fast connection.
4. easy and intuitive menu for you to quickly master the operation of the device.
4. the wiring diagram can be accessed via OBDSTAR APP
5. the device is portable and cost-effective.
6. Mini USB upgrade cable connects directly to the computer for one-click upgrade.
7. Dealer code: 860010A1

How to Register and Update OBDSTAR hand-held tools (including MT102)

Supported brands

Land Rover / Jaguar

Evoque

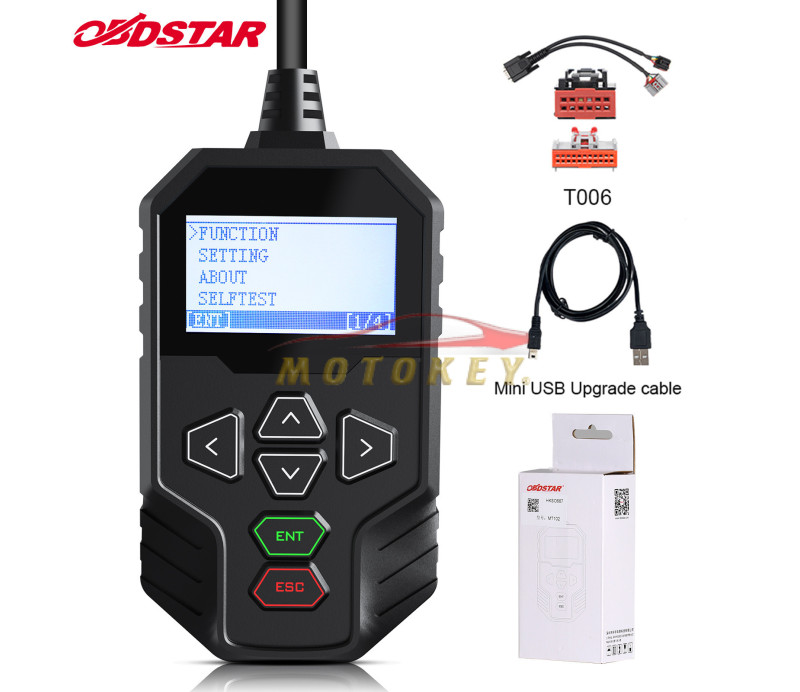

Packing ist
1set OBDSTAR MT102

OBDSTAR Mobile APP function diagram

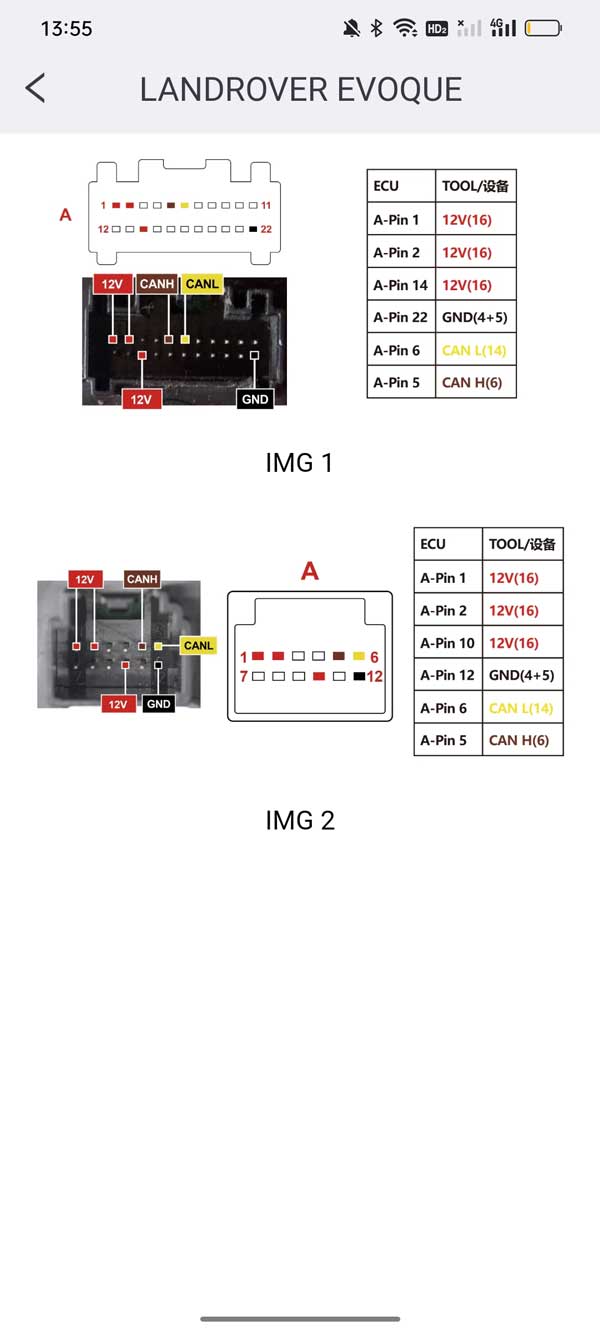

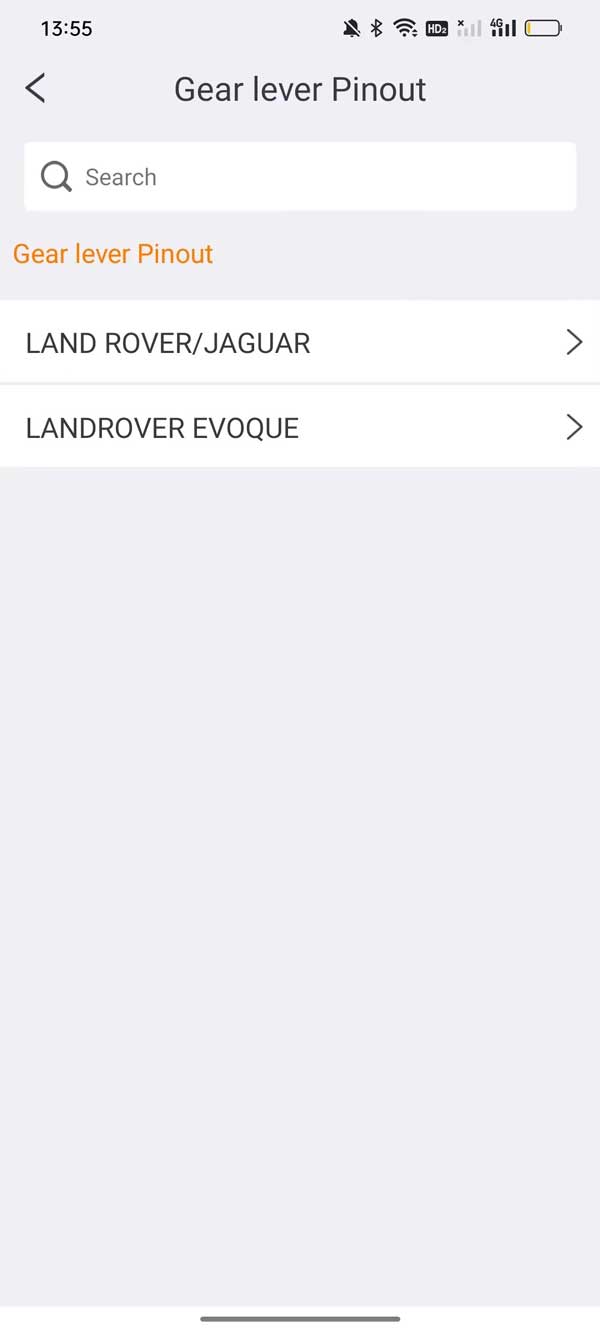

Bind MT102 with OBDSTAR App to check wiring diagram (instruction)

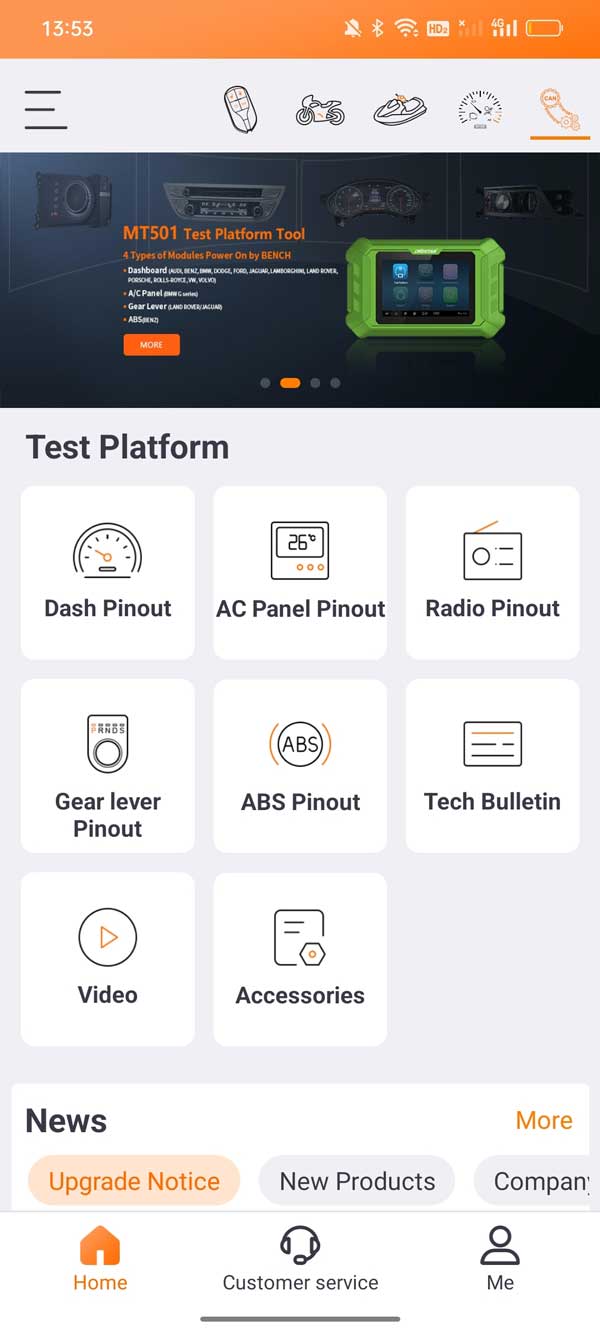

1) Main interface of Test Platform
